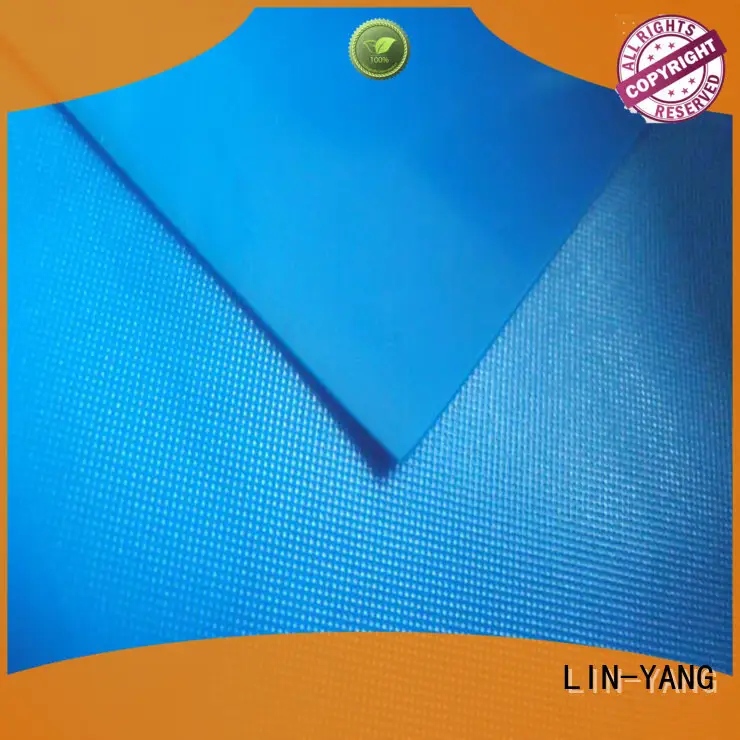

Weatherability, rich variety, waterproof, anti-fouling colored normal PVC film5
Width Range:
20 ~ 260inch
Thickness Range:
0.06mm to 1.0mm
Softness Range:
18PHR to 78PHR (70PHR and above will be charged additionally)
Embossing:
over 30 kinds of embossing patterns
Color:
Per pantone colors or customer-supplied samples
Enterprise Strength
- By now, there are over staff members in our company, among which there are members in the design team, in the R&D center, and staff in the after-sales department. All of them are well-trained.
- LIN-YANG always focuses on customers' needs and strives to meet their needs over the years. We are committed to providing comprehensive and professional services.
- LIN-YANG focuses on the principle of "continuous improvement on product quality" and actively conducts R&D research before production.
- For over years, we have been conducting the business of PVC Tarpaulin manufacturer so that we have gathered rich customer cases and can offer various design services to satisfy customers' needs.
- We have been doing export business since our foundation and have partnered with customers from . Customers from these countries have been giving us great feedback.
1. LIN-YANG pvc film price is manufactured with the support of a full range of equipment.
2. By improving the manufacturing technology, pvc plastic sheet roll now gains more and more attention at home and abroad.
3. pvc plastic sheet roll have been widely used in pvc film price for their white pvc film features.
4. Customers who sell phone accessories will find that it is easy to take down and pack away for shipping, which saves their transportation expenses.
PVC calendaring film is made by calendaring process. Calendaring is the process of making the heated PVC plastic through the space between one or more horizontal rollers rotating in the opposite direction, so that the material can withstand extrusion and extension, and become a thin product with certain thickness, width and smooth surface. Polyvinyl chloride rolling film occupies an important position in plastic shed film. In addition, it is widely used in salt field tarpaulin cover, industrial packaging, electrical insulation, inflatable film products, lamp box advertising, engineering waterproof, daily necessities packaging and other aspects.
Detailed product parameters
bg
| DESCRIPTION | TECHNICAL REQUIREMENTS | Normal PVC film |
| Color | Per pantone colors or customer-supplied samples | |
| Width Range(inch) | Normal calendaring production line | 20 ~ 80inch |
| Thickness Range（mm） | 0.06mm to 1.00mm (max 1.50mm per embossing pattern 666) | |
| Softness Range（phr） | 18PHR to 78PHR (70PHR and above will be charged additionally) | |
| Embossing | over 30 kinds of embossing patterns | |
| Width Range(inch) | Large calendaring production line | 40 ~ 260inch |
| Thickness Range（mm） | 0.12mm to 0.5mm | |
| Softness Range（phr） | 18PHR to 78PHR (70PHR and above will be charged additionally) | |
| Embossing | Three patterns currently : 001 / 002 / 900 | |
Special Formula The following standards can be fulfilled with our special formula, and will be charged additionally. | EN-71 part I to part VIII | |
| ASTM963 / D3421-75 /D1790 | ||
| RoHS test | ||
| PAHs test | ||
| DEHP<3%, DEHP<0.1% | ||
| Japan Toy Safety Standard | ||
| Flammability Test BS5852 | ||
| 3P <1000PPM | BBP, DBP, DEHP | |
| 6P <1000PPM | Phthalate-free <0.01% (DINP, DNOP, DEHP, DIDP, BBP, DBP) | |
| 15P <1000PPM | Phthalate-free <0.01% (DBP,DMP,DEP,DEHP,DINP,BBP,DPP,DNOP,DNP,DIDP,DCHP,DPRP,DHP,DIBP,DIOP) | |
| — 30 > —10 | Freeze test | |
| 100 ~ 30000 | Anti-ultraviolet (UV) rays | |
| Anti-mildew | ||
| Fire retardant | ||
| < 10PPM | Consumption of potassium permanganate | |
| < 5PPM | Phenol | |
| < 1PPM | Vinyl-chloride | |
| Free of AZO dye compound (amines-free) | ||
| Free of tin-organic | ||
| Free of nonylphenol |
Product application
bg
Stationary film
Handbags membrane
Protective film
Electrical tape Inflatable toys
Plastic shower curtain
Plastic tablecloth
Plastic raincoat / umbrella
Features
bg
The reason why PVC calender is so widely used is that it has the following characteristics:
part.1
High tensile strength
The tensile strength of PVC film is up to 29MPa. PE film and EVA film
were damaged in all the dust storms in northwest China, except PVC film
part.2
Good insulation performance
As a covering material for agricultural greenhouses, glass has the best
thermal insulation performance, followed by PVC calender film (with
strong infrared absorption capacity) and PE film. In addition, at night,
the thermal insulation performance of PVC film is not different from
that of glass, which is very beneficial to the growth of crops.
part.3
Good transparency
The PVC calendering film is extruded by the mirror roller in the process
of forming. The surface is highly polished, and the condensation of
water droplets is less, so the transmittance is higher, which is
beneficial to the photosynthesis of crops
part.4
Uniform thickness
Since the roll tube of PVC calender film is in the shape of medium drum
and the middle roll crosses, the lower roll has prestrain and the roll
surface has been finely ground, so the thickness accuracy is high
part.5
Good adhesion performance
According to the need of use, PVC calender film can be used high
frequency welding, thermal bonding and adhesive bonding methods, easy to
use.
In addition, according to the different USES of PVC film, the production
formula and technological conditions can be changed to meet the
requirements
Operation process
bg
calendaring
laminating
Certifications
bg
EN71-3-1
EN71-3-2
EN71-3-3
EN71-3-4
REACH181-2018
REACH181-2018-2
Company Features
1. With the development of society, LIN-YANG has been developing its own innovation ability to manufacture pvc plastic sheet roll.
2. Excellent pvc film roll production depends on our cutting-edge technology.
3. ZHONGSHAN LIN-YANG PLASTIC CO.LTD aims to offer every customers superior pvc plastic sheet roll and satisfying service. Call! As an important part of LIN-YANG growth, enterprise culture is a key to make our company more cohesive. Call! The ambitious LIN-YANG is striving to be the best pvc plastic sheet roll supplier among the industry. Call!
