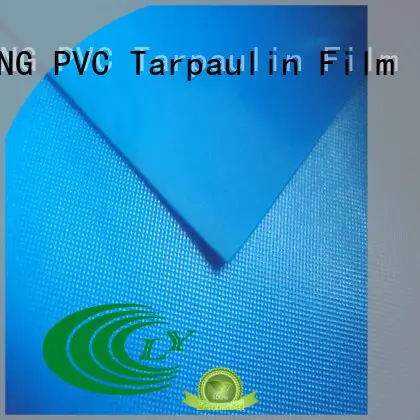

LINYANG waterproof pvc plastic sheet roll design for umbrella
Width Range:
20 ~ 260inch
Thickness Range:
0.06mm to 1.0mm
Softness Range:
18PHR to 78PHR (70PHR and above will be charged additionally)
Embossing:
over 30 kinds of embossing patterns
Color:
Per pantone colors or customer-supplied samples
Product Comparison
LIN-YANG insists on the use of high-quality materials and advanced technology to manufacture PVC Tarpaulin manufacturer. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.We guarantee that all of our products can meet the with strict QC procedure strictly conducted.PVC Tarpaulin manufacturer in LIN-YANG has the following advantages, compared with same kind of products in the market.
Application Scope
LIN-YANG's Flex Banner can play a role in various industries.LIN-YANG is committed to producing quality PVC Tarpaulin manufacturer and providing comprehensive and reasonable solutions for customers.We guarantee that all of our products can meet the with strict QC procedure strictly conducted.
1. LINYANG white pvc film delivers incomparable design concepts.
2. This product is equipped with protective qualities thanks to the coatings. While the coating is in liquid form, chemical compounds are added to provide pigment, flame retardance, UV, water and mildew resistance.
3. The product ensures that goods are safe when they are shipped to consumers and stores, as well as when they sit on store shelves.
4. The visual presentation of this product helps attract consumers and persuade them to pick up an item, learn what it's used for and determine if the item will add value to their lives.
PVC calendaring film is made by calendaring process. Calendaring is the process of making the heated PVC plastic through the space between one or more horizontal rollers rotating in the opposite direction, so that the material can withstand extrusion and extension, and become a thin product with certain thickness, width and smooth surface. Polyvinyl chloride rolling film occupies an important position in plastic shed film. In addition, it is widely used in salt field tarpaulin cover, industrial packaging, electrical insulation, inflatable film products, lamp box advertising, engineering waterproof, daily necessities packaging and other aspects.
Detailed product parameters
bg
| DESCRIPTION | TECHNICAL REQUIREMENTS | Normal PVC film |
| Color | Per pantone colors or customer-supplied samples | |
| Width Range(inch) | Normal calendaring production line | 20 ~ 80inch |
| Thickness Range（mm） | 0.06mm to 1.00mm (max 1.50mm per embossing pattern 666) | |
| Softness Range（phr） | 18PHR to 78PHR (70PHR and above will be charged additionally) | |
| Embossing | over 30 kinds of embossing patterns | |
| Width Range(inch) | Large calendaring production line | 40 ~ 260inch |
| Thickness Range（mm） | 0.12mm to 0.5mm | |
| Softness Range（phr） | 18PHR to 78PHR (70PHR and above will be charged additionally) | |
| Embossing | Three patterns currently : 001 / 002 / 900 | |
Special Formula The following standards can be fulfilled with our special formula, and will be charged additionally. | EN-71 part I to part VIII | |
| ASTM963 / D3421-75 /D1790 | ||
| RoHS test | ||
| PAHs test | ||
| DEHP<3%, DEHP<0.1% | ||
| Japan Toy Safety Standard | ||
| Flammability Test BS5852 | ||
| 3P <1000PPM | BBP, DBP, DEHP | |
| 6P <1000PPM | Phthalate-free <0.01% (DINP, DNOP, DEHP, DIDP, BBP, DBP) | |
| 15P <1000PPM | Phthalate-free <0.01% (DBP,DMP,DEP,DEHP,DINP,BBP,DPP,DNOP,DNP,DIDP,DCHP,DPRP,DHP,DIBP,DIOP) | |
| — 30 > —10 | Freeze test | |
| 100 ~ 30000 | Anti-ultraviolet (UV) rays | |
| Anti-mildew | ||
| Fire retardant | ||
| < 10PPM | Consumption of potassium permanganate | |
| < 5PPM | Phenol | |
| < 1PPM | Vinyl-chloride | |
| Free of AZO dye compound (amines-free) | ||
| Free of tin-organic | ||
| Free of nonylphenol |
Product application
bg
Stationery film
Handbags membrane
Protective film
Electrical tape Inflatable toys
Plastic shower curtain
Plastic tablecloth
Plastic raincoat / umbrella
Features
bg
The reason why PVC calender is so widely used is that it has the following characteristics:
part.1
High tensile strength
The tensile strength of PVC film is up to 29MPa. PE film and EVA film
were damaged in all the dust storms in northwest China, except PVC film
part.2
Good insulation performance
As a covering material for agricultural greenhouses, glass has the best
thermal insulation performance, followed by PVC calender film (with
strong infrared absorption capacity) and PE film. In addition, at night,
the thermal insulation performance of PVC film is not different from
that of glass, which is very beneficial to the growth of crops.
part.3
Good transparency
The PVC calendering film is extruded by the mirror roller in the process
of forming. The surface is highly polished, and the condensation of
water droplets is less, so the transmittance is higher, which is
beneficial to the photosynthesis of crops
part.4
Uniform thickness
Since the roll tube of PVC calender film is in the shape of medium drum
and the middle roll crosses, the lower roll has prestrain and the roll
surface has been finely ground, so the thickness accuracy is high
part.5
Good adhesion performance
According to the need of use, PVC calender film can be used high
frequency welding, thermal bonding and adhesive bonding methods, easy to
use.
In addition, according to the different USES of PVC film, the production
formula and technological conditions can be changed to meet the
requirements
Operation process
bg
calendaring
laminating
Certifications
bg
EN71-3-1
EN71-3-2
EN71-3-3
EN71-3-4
REACH181-2018
REACH181-2018-2
Company Features
1. After several years of arduous pioneering, ZHONGSHAN LINYANG PLASTIC CO.LTD has established a good management system and market network.
2. LINYANG is a professional company with the most experienced technical staff.
3. We remain faithful to improving customers satisfaction. We will devote greater effort to achieve this goal, for example, we promise to use harmless materials, ensure every piece of the product to be inspected, and offer real-time responses. Our goal is to spare no efforts to provide the highest level of products. We are devoted to exploring and developing new worldwide opportunities and corporate with our clients. Our company keeps faith in 'surviving on quality and thriving by innovation'. We will make our products be sold to all over the world in virtue of consummate technics and reliable quality.
