Company Advantages1. LINYANG white
pvc film is superior in raw materials: Its materials are environmentally friendly, doing no harm to the environment. They are strictly selected complying with the highest packaging standard. Looking to build Eco-Agriculture Tarps or Tent Tarps? Find Lin-Yang Plastic
2. ZHONGSHAN LINYANG PLASTIC CO.LTD has a professional after-sales service department, which is responsible for offering comprehensive after-sales service and support. Lin-Yang Plastic: Get in touch with your requirements
3. In general, using this product is the easiest and most effective way to promote a commodity. This is because its use helps to brand this commodity. One PVC film gives you multifunctional uses in life
4. This product has a marketing role. It can develop product appeal, provide goods information and build a brand image and awareness. Lin-Yang Plastic: Offer you the best PVC film solution
5. This product has a delicate appearance. It is designed by our expert designers who have a wealth of packaging and printing knowledge. Need to expand your market? Wish to increase your revenue? Come to find Lin-Yang Plastic

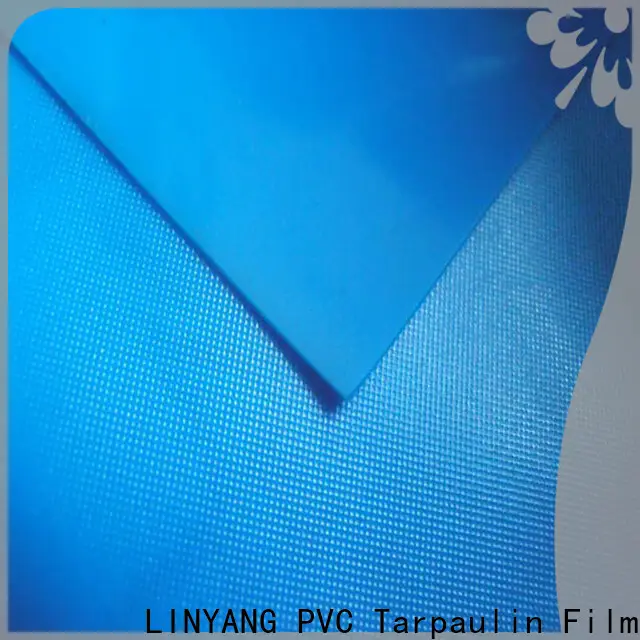

PVC calendaring film is made by calendaring process. Calendaring is the process of making the heated PVC plastic through the space between one or more horizontal rollers rotating in the opposite direction, so that the material can withstand extrusion and extension, and become a thin product with certain thickness, width and smooth surface. Polyvinyl chloride rolling film occupies an important position in plastic shed film. In addition, it is widely used in salt field tarpaulin cover, industrial packaging, electrical insulation, inflatable film products, lamp box advertising, engineering waterproof, daily necessities packaging and other aspects.
Detailed product parameters
bg
DESCRIPTION | TECHNICAL REQUIREMENTS | Normal PVC film |
Color | | Per pantone colors or customer-supplied samples |
Width Range(inch) |
Normal calendaring production line | 20 ~ 80inch |
Thickness Range(mm) | 0.06mm to 1.00mm
(max 1.50mm per embossing pattern 666) |
Softness Range(phr) | 18PHR to 78PHR (70PHR and above will be charged additionally) |
Embossing | over 30 kinds of embossing patterns |
Width Range(inch) |
Large calendaring production line | 40 ~ 260inch |
Thickness Range(mm) | 0.12mm to 0.5mm |
Softness Range(phr) | 18PHR to 78PHR (70PHR and above will be charged additionally) |
Embossing | Three patterns currently : 001 / 002 / 900 |
Special Formula The following standards can be fulfilled with our special formula, and will be charged additionally. | | EN-71 part I to part VIII |
| ASTM963 / D3421-75 /D1790 |
| RoHS test |
| PAHs test |
| DEHP<3%, DEHP<0.1% |
| Japan Toy Safety Standard |
| Flammability Test BS5852 |
3P <1000PPM | BBP, DBP, DEHP |
6P <1000PPM | Phthalate-free <0.01%
(DINP, DNOP, DEHP, DIDP, BBP, DBP) |
15P <1000PPM | Phthalate-free <0.01% (DBP,DMP,DEP,DEHP,DINP,BBP,DPP,DNOP,DNP,DIDP,DCHP,DPRP,DHP,DIBP,DIOP) |
— 30 > —10 | Freeze test |
100 ~ 30000 | Anti-ultraviolet (UV) rays |
| Anti-mildew |
| Fire retardant |
< 10PPM | Consumption of potassium permanganate |
< 5PPM | Phenol |
< 1PPM | Vinyl-chloride |
| Free of AZO dye compound (amines-free) |
| Free of tin-organic |
| Free of nonylphenol |
Electrical tape Inflatable toys
Plastic raincoat / umbrella
The reason why PVC calender is so widely used is that it has the following characteristics:
part.1
High tensile strength
The tensile strength of PVC film is up to 29MPa. PE film and EVA film
were damaged in all the dust storms in northwest China, except PVC film
part.2
Good insulation performance
As a covering material for agricultural greenhouses, glass has the best
thermal insulation performance, followed by PVC calender film (with
strong infrared absorption capacity) and PE film. In addition, at night,
the thermal insulation performance of PVC film is not different from
that of glass, which is very beneficial to the growth of crops.
part.3
Good transparency
The PVC calendering film is extruded by the mirror roller in the process
of forming. The surface is highly polished, and the condensation of
water droplets is less, so the transmittance is higher, which is
beneficial to the photosynthesis of crops
part.4
Uniform thickness
Since the roll tube of PVC calender film is in the shape of medium drum
and the middle roll crosses, the lower roll has prestrain and the roll
surface has been finely ground, so the thickness accuracy is high
part.5
Good adhesion performance
According to the need of use, PVC calender film can be used high
frequency welding, thermal bonding and adhesive bonding methods, easy to
use.
In addition, according to the different USES of PVC film, the production
formula and technological conditions can be changed to meet the
requirements
Company Features1. It turns out to be efficient that seizing the precious chance to develop pvc film roll is a wise choice to LINYANG. The state-of-the-art technology has successfully helped ZHONGSHAN LINYANG PLASTIC CO.LTD improve the performance of pvc plastic sheet roll.
2. ZHONGSHAN LINYANG PLASTIC CO.LTD is technologically leading the development of pvc film roll field.
3. We have a strong and professional customer service team who are an important part of our company. They have the abilities and strong expertise to provide advice and manage the negative emotion of customers. LINYANG has a lofty aspiration to be a pioneer in producing pvc film roll . Ask!
